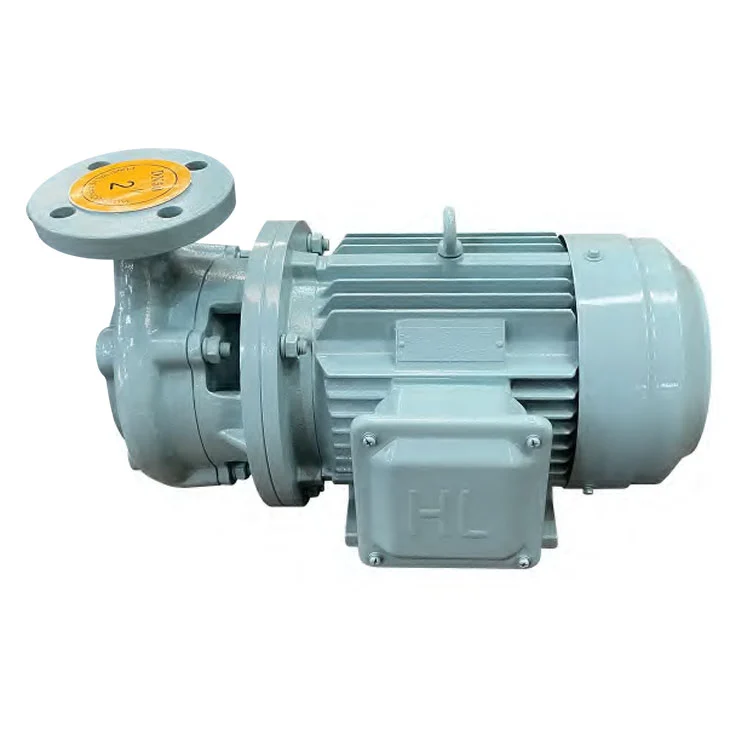

CWF海洋水平压碎泵是一个开放式式离心机放电泵。它粉碎并转移了85°以下的软污污染物，例如纸，食物浪费，污垢残留物，污泥，排泄等。圆形粉碎后，固体颗粒的最大直径在5mm之内。它还可以粉碎重油的低温凝结，从而促进注射。
50Hz3φ380V的电源频率的性能和参数表：
| 类型 | （50Hz3φ380V）主要技术参数 | 电机类型电源kW | 重量 公斤 |
|||||
| 容量 M3/h |
头 m |
速度r/min | npshr m |
轴功率 KW |
||||
| 0.5CWF-10 | 5 | 10 | 2900 | 3.5 | 0.65 | Y802-2H | 1.1 | |
| 0.5CWF-10I | 2 | 15 | 2900 | Y802-2H | 1.1 | |||
| 0.5CWF-15 | 5 | 15 | 2900 | Y90S-2H | 1.5 | |||
| 0.5CWF-15A | 5 | 13 | 2900 | Y802-2H | 1.1 | |||
| 0.5CWF-20 | 5 | 20 | 2900 | Y90L-2H | 2.2 | |||
| 0.5CWF-20A | 5 | 18 | 2900 | Y90S-2H | 1.5 | |||
| 0.5CWF-25 | 5 | 25 | 2900 | Y90L-2H | 2.2 | |||
| 0.5CWF-25DS | 5 | 25 | 2900 | Y90L-2H | 2.2 | |||
| 0.5CWF-30 | 5 | 30 | 2900 | Y112M-2H | 4 | |||
| 1CWF-10 | 10 | 10 | 2900 | Y90S-2H | 1.5 | |||
| 1CWF-15 | 10 | 15 | 2900 | Y90L-2H | 2.2 | |||
| 1CWF-20 | 10 | 20 | 2900 | Y100L-2H | 3 | |||
| 1CWF-25 | 10 | 25 | 2900 | 3.8 | 2.3 | Y112M-2H | 4 | |
| 1CWF-30 | 10 | 30 | 2900 | Y112M-2H | 4 | |||
| 1.5CWF-15 | 15 | 15 | 2900 | Y100L-2H | 3 | |||
| 1.5CWF-20 | 15 | 20 | 2900 | Y112M-2H | 4 | |||
| 1.5CWF-25 | 15 | 25 | 2900 | Y112M-2H | 4 | |||
| 1.5CWF-30 | 15 | 30 | 2900 | Y132S1-2H | 5.5 | |||
| 1.5CWF-35 | 15 | 35 | 2900 | 6 | Y132S2-2H | 7.5 | ||
| 2CWF-15 | 20 | 15 | 2900 | Y100L-2H | 3 | |||
| 2CWF-20 | 20 | 20 | 2900 | Y112M-2H | 4 | |||
| 2CWF-25 | 20 | 25 | 2900 | Y132S1-2H | 5.5 | |||
| 2CWF-30 | 20 | 30 | 2900 | Y132S2-2H | 7.5 | |||
| 3CWF-12 | 25 | 12 | 2900 | 4 | Y112M-2H | 4 | ||
| 3CWF-30 | 30 | 30 | 2950 | 4 | Y160M1-2H | 11 | ||
60Hz3φ440V的电源频率的性能和参数表
| 类型 | （60Hz3φ440V）主要技术参数 | 电机类型电源kW | 重量 公斤 |
|||||
| 容量 M3/h |
头 m |
速度r/min | npshr m |
轴功率 KW |
||||
| 0.5CWF1-10 | 6 | 14.5 | 3500 | Y90L-2H | 2.2 | |||
| 0.5CWF1-10I | 2.4 | 21.5 | 3500 | Y90L-2H | 2.2 | |||
| 0.5CWF1-15 | 6 | 21.5 | 3500 | Y100L-2H | 3 | |||
| 0.5CWF1-15A | 6 | 18.5 | 3500 | Y90L-2H | 2.2 | |||
| 0.5CWF1-20 | 6 | 29 | 3500 | Y100L-2H | 3 | |||
| 0.5CWF1-20A | 6 | 26 | 3500 | Y100L-2H | 3 | |||
| 0.5CWF1-25 | 6 | 36 | 3500 | Y112M-2H | 4 | |||
| 0.5CWF1-30 | 6 | 43 | 3500 | Y132S1-2H | 5.5 | |||
| 1CWF1-10 | 12 | 14.5 | 3500 | Y100L-2H | 3 | |||
| 1CWF1-15 | 12 | 21.5 | 3500 | Y112M-2H | 4 | |||
| 1CWF1-20 | 12 | 29 | 3500 | Y132S1-2H | 5.5 | |||
| 1CWF1-25 | 12 | 36 | 3500 | Y132S1-2H | 5.5 | |||
| 1CWF1-30 | 12 | 43 | 3550 | Y160M1-2H | 11 | |||
| 1.5CWF1-35 | 18 | 52 | 3550 | Y160M1-2H | 11 | |||
| 1.5CWF1-15 | 18 | 21.5 | 3500 | Y132S1-2H | 5.5 | |||
| 1.5CWF1-20 | 18 | 29 | 3500 | Y132S2-2H | 7.5 | |||
| 1.5CWF1-25 | 18 | 36 | 3550 | Y160M1-2H | 11 | |||
| 1.5CWF1-30 | 18 | 43 | 3550 | Y160M1-2H | 11 | |||
| 2CWF1-15 | 24 | 21.5 | 3500 | Y132S1-2H | 5.5 | |||
| 2CWF1-20 | 24 | 26 | 3500 | Y132S2-2H | 7.5 | |||
| 2CWF1-25 | 24 | 36 | 3550 | Y160M1-2H | 11 | |||
| 2CWF1-30 | 24 | 43 | 3550 | Y160M2-2H | 15 | |||
| 3CWF1-12 | 30 | 17.3 | 3500 | 5.6 | Y132S2-2H | 7.5 | ||
| 3CWF1-30 | 36 | 43 | 3550 | Y160L-2H | 18.5 | |||
